Garage Door Parts Diagram: Every Component Explained
A residential garage door is nine connected systems: the panels, the tracks, the torsion spring and shaft, the lift cables, the rollers, the hinges, the bottom seal, and the opener with its motor, rail, and trolley. The three original diagrams below label every part in each system. Click any part's link to see what it does, the failure pattern we see most in Hampton Roads, and the published 2026 repair range, sourced from our own service pages rather than a national average.
If one of these parts just broke, our garage door repair team fixes it same day across Hampton Roads: call (757) 777-3330 and we name the part on site and quote the repair in writing before any work starts.
Key takeaways
- Three systems fail the most in Hampton Roads: the torsion spring (loud bang, door won't lift), the rollers and cables (grinding, fraying, off-track doors), and the opener's receiver or logic board (remote or keypad stops working).
- A torsion spring pair runs $345 to $575 installed. A cable pair runs $160 to $280. A full roller set runs $120 to $200.
- Hinges are the cheapest part on the door, $24 to $80 for a full set of 6 in parts, or $140 to $220 for a professional service call if a hinge has bent a panel edge.
- The bottom seal is the part most homeowners can identify and least homeowners replace on time. A standard bottom seal and weatherstripping job runs $110 to $190; a coastal-rated EPDM bulb seal on a single-car door runs $249.
- Every labeled part below links to its own repair page with the full published price range and what a technician actually checks.
Full system diagram
The complete door, front cutaway view. Panels 1 through 4, both tracks, the torsion spring and shaft, the lift cables, the rollers, the hinges, the bottom seal, the opener motor and rail, and the wall control console.
| Part | What it does | How it fails | 2026 repair range |
|---|---|---|---|
| 1. Door panels | The visible sections that make up the door face, usually 3 to 5 per residential door. | Dented by a car bumper, cracked from a bent hinge, or corroded at the bottom edge from standing water. | Section or panel $320-$680 |
| 2. Tracks | Vertical and horizontal metal channels that guide the rollers as the door travels. | Bent by a car backing into the door, or knocked out of alignment when a cable snaps. | Off-track reset $160-$320 |
| 3. Torsion spring & shaft | Counterbalances the door's full weight so the opener only has to move it, not lift it. | Metal fatigue after 7 to 12 years or 10,000 to 20,000 cycles, ends in a sudden snap. | Spring pair $345-$575 |
| 4. Lift cables | Steel cables that connect the bottom corners of the door to the spring's cable drums. | Fraying strands from drum wear, or a snap when a spring fails and dumps full tension onto the cable. | Cable pair $160-$280 |
| 5. Rollers | Wheels bolted to each panel's hinge that ride inside the track as the door opens and closes. | Steel rollers wear and grind after 5 to 8 years; a cracked or missing roller lets the panel jump the track. | Roller set $120-$200 |
| 6. Hinges | Connect adjoining panels and hold the roller stems, letting the door flex around the curved track. | Loosen and elongate their bolt holes over years of cycling, which shows up as a sagging or crooked panel line. | Service call $140-$220 |
| 7. Bottom seal | A rubber weatherstrip in a track along the bottom edge that blocks water, wind, and pests. | Cracks, flattens, or pulls loose after UV and salt-air exposure, usually inside 3 to 5 years on this coast. | Seal $110-$190; EPDM bulb seal $249 single-car |
| 8-9. Opener, rail & console | Motor head, rail, trolley, and wall console that drive the door and read the remote, keypad, and safety sensors. | Worn drive gear, a failed logic board, or a receiver that stops recognizing remotes and keypads. | Opener repair $60-$380 |
Found the broken part on the diagram? Call and tell us its number (for example, "4, a lift cable is hanging loose") and what the door is doing. We confirm it on site and quote before we start; prices can vary with door weight, spring size, rust or structural damage, and parts needed.
Or call (757) 777-3330
Torsion spring system, close up
The hardware directly above the door opening: the torsion spring wound on a steel shaft, the center support bracket, the winding cone, the cable drum, the lift cable, and the end bearing plate that anchors it to the wall. This is the single highest-tension assembly on the door and the reason spring work is not a DIY repair.
See the full spring repair page for grades, cycle life, and why we default to 20,000-cycle springs, or the spring replacement cost guide for a DIY-vs-pro breakdown.
Opener assembly, close up
The motor head, rail, trolley, drive belt or chain, safety reversing sensors, wall control console, and emergency release cord. This is the part of the system most homeowners interact with daily and the part most likely to fail electronically rather than mechanically.
Full troubleshooting for this system: opener repair, programming a remote or keypad, or our opener troubleshooting guide if the motor runs but the door won't move.

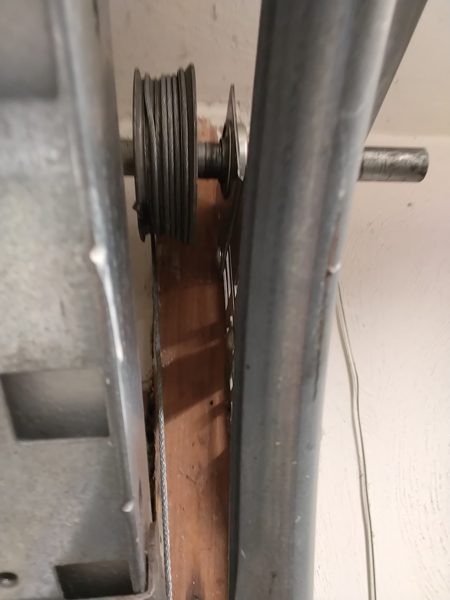

Garage door cable diagram: where the lift cables go
On a torsion-spring door, each lift cable runs from the bottom bracket at the lower corner of the door, straight up between the vertical track and the door jamb, and wraps onto the cable drum at the end of the torsion shaft above the opening. The spring turns the shaft, the shaft turns both drums, and the drums wind the cables in evenly so both sides of the door rise together. That is why a cable that slips off one drum makes the door hang crooked or jump the track on that side.
On an extension-spring door (5 of our last 70 paid invoices were extension spring pairs), the path is different: each cable runs from the bottom bracket up to a pulley mounted at the front of the horizontal track, back to a second pulley riding on the end of the extension spring, and forward again to an anchor near the front of the track. A separate safety containment cable runs through the middle of each extension spring so a broken spring cannot fly across the garage.
Where does the cable go on a garage door?
The cable loops onto the bottom bracket at the lower corner of the door, runs up between the track and the jamb, and wraps into the grooves of the drum on the torsion shaft (or, on an extension-spring door, over two pulleys to an anchor on the horizontal track). If you can see a cable hanging loose anywhere else, it has come off its path.

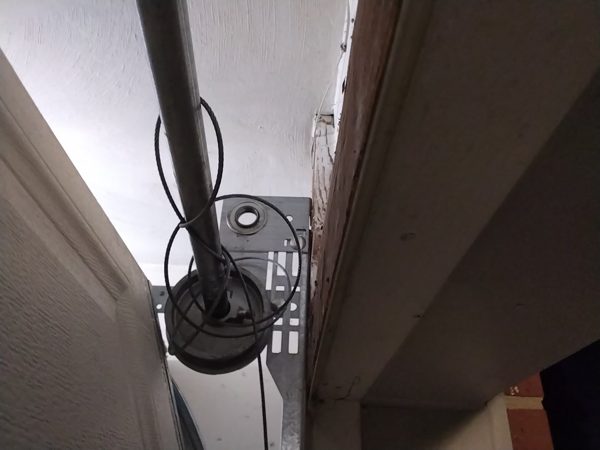

Why did my garage door cable come off the drum?
Because that side lost tension: a broken spring, a door that came off its track or hit something on the way down, or a frayed or stretched cable lets the cable go slack and slip out of the drum grooves. On our Portsmouth midnight call the door was stuck open overhead, one cable was wrapped loose around the shaft, and a roller had walked out of the horizontal track on the same side.
My garage door cable is loose on one side. Can I fix it myself?
Not safely: that cable carries the force of a wound spring, so leave the door where it is, unplug the opener so nobody presses the button, and call. A cable replacement runs $160 to $280 for the pair and an off-track reset runs $160 to $320 at our published prices; prices can vary with door weight, spring size, rust or structural damage, and parts needed, and we quote in writing before we start.
How do you put a cable back on a garage door?
A technician secures the door so it cannot move, takes the spring tension off the shaft with winding bars, re-seats the cable in the bottom bracket and the drum grooves, then rewinds the spring and sets the tension so both cables pull evenly. It is the riskiest repair on this page to attempt without the right bars and training.
"People see a loose cable and think it's a five-minute fix with a pair of pliers." That Portsmouth call came in at 11:08 on a Friday night, door stuck open, one cable wrapped around the shaft instead of sitting on its drum. That cable is the only thing between a wound spring and the door, so I don't put a hand on it until the tension is under control. Back on the drum, back in the tracks, door shut before 2 AM.
Garage door opener parts diagram: every opener part by name
A residential garage door opener is built from 14 named parts: the power head (with the motor, drive gear and sprocket, logic board and radio receiver inside), the rail, the belt, chain or screw drive, the trolley, the door arm, the door bracket, the header bracket, the emergency release cord, two safety sensors, the wall control, and the remotes and keypad. The opener close-up above shows where they sit; the table below gives what each one does and, where we publish one, the repair price.
| Opener part | What it does | Published price |
|---|---|---|
| Power head and motor | The ceiling-mounted unit that holds the motor, the light and the electronics. | New opener installed $399-$799 |
| Drive gear and sprocket | Turns the motor's spin into belt or chain travel; the plastic gear is the classic wear part on older units. | $160-$260 |
| Logic (circuit) board | The opener's brain: travel limits, force settings, the safety-sensor check. | $240-$380 |
| Radio receiver and antenna | Listens for the remotes, keypad and car buttons. | Programming $60-$110 |
| Rail | The long bar from the power head to the wall above the door; the trolley rides on it. | Quoted on site |
| Belt, chain or screw drive | Pulls the trolley along the rail. Belts are quiet, chains are loud and tough, screw drives are rare here. | Drive replacement $160-$260 |
| Trolley (carriage) | Rides the rail and connects the drive to the door arm. | Quoted on site |
| Door arm | The straight and curved bars between the trolley and the door. | Quoted on site |
| Door bracket (operator bracket) | Bolted to the top section; the door arm pins to it. A Norfolk customer this August described a missing one as the metal bracket the door hooks onto. | Quoted on site |
| Header bracket | Anchors the front of the rail to the wall above the door. | Quoted on site |
| Emergency release cord | The red handle that disconnects the trolley so the door moves by hand in a power outage. | Quoted on site |
| Safety sensors (photo eyes) | Two small eyes about 6 inches off the floor that stop and reverse the door if the beam is broken. | $120-$220 |
| Wall control | The button or console by the house door, often with a light and lock switch. | Quoted on site |
| Remotes and keypad | Send the signal the receiver listens for. | Programming $60-$110 |
A wall-mount (jackshaft) opener skips the rail, trolley and arm entirely and drives the torsion shaft from the side of the door; those install for $849 to $1,290. Prices can vary with the opener model, the door and the parts needed, and every number here comes from our price list. For a diagnosis start at opener repair.
What are the parts of a garage door called? The complete parts names list
These are the names a technician uses for every part of a residential sectional garage door, grouped by where each part sits. Knowing the name makes the phone call faster.
- The door itself: sections (also called panels: the top section, intermediate sections, lock section and bottom section), end stiles and center stiles, reinforcing struts across the wider sections, the top fixture (top roller bracket), the bottom brackets where the cables attach, the bottom seal (astragal) and its retainer, the lift handle or step plate, and the lock bar or keyed lock.
- Hinges and rollers: graduated hinges numbered from the bottom up (the higher the number, the farther it holds the roller off the door so the door seals against the stop), and rollers in nylon or steel with short or long stems. When a caller tells us "the back wheel came off the track," that wheel is a roller.
- Tracks: vertical tracks, horizontal tracks, the curved radius between them, flag brackets that tie the two to the jamb, jamb brackets, and rear track hangers (the perforated angle iron hanging the back of the track from the ceiling).
- Torsion counterbalance: torsion springs (red-coded and black-coded springs are the left-wound and right-wound halves of a pair), winding cones, stationary cones, the center bearing plate, the torsion tube or shaft, cable drums, end bearing plates and the lift cables.
- Extension counterbalance: extension springs, sheave pulleys, safety containment cables, the clevis that holds the spring pulley, and S-hooks or eye bolts at the anchors.
- Frame: the two side jambs, the header, the doorstop molding with its vinyl weather flap (the perimeter seal), and on some floors a threshold seal.
- Opener: all 14 parts named in the opener parts table above.
What are the most common garage door repairs? Our own 2026 job records
Springs, by a wide margin: 24 of our last 70 paid invoices (April 15 to October 2, 2026) carried a torsion or extension spring line, about one job in three. These counts come straight from our job records, by part, not from a national survey. An invoice can include more than one part, so the rows add up to more than 70.
| Part or repair on the invoice | Paid invoices (of 70) | Diagram part |
|---|---|---|
| Springs (19 torsion, 5 extension pairs) | 24 | 3 |
| Opener repair: belt, sensors, limits, bracket, remotes or keypad | 14 | 8-9 |
| New opener installed | 12 | 8-9 |
| New garage door installed | 10 | all |
| Tune-up or maintenance visit | 8 | all |
| Spring-system conversion (TorqueMaster or extension to torsion) | 7 | 3 |
| Lift cables | 4 | 4 |
| Off-track recovery | 4 | 2, 5 |
| Section or strut replacement | 4 | 1 |
| Doorstop trim (frame weatherstrip) | 4 | frame |
On the spring lines themselves, .207-wire springs showed up 11 times and .225-wire 8 times, then .234 (3) and .218 (2). Wire size is set by the door's weight and height, which is why the spring is measured on site instead of guessed from a photo. Spring work is on our spring repair page.
How long do garage door parts last?
A quality insulated steel door installed correctly lasts 20 to 30 years in Hampton Roads, but the moving parts on it wear out much sooner, and the springs go first.
| Part | Typical life here |
|---|---|
| Torsion springs | 7 to 12 years, or 10,000 to 20,000 cycles (we install 20,000-cycle pairs) |
| Steel rollers | 5 to 8 years before they grind |
| Bottom seal | 3 to 5 years in salt air and sun |
| Belt-drive opener | 15 to 20 years at 3 to 5 cycles a day |
| Chain-drive opener | 12 to 15 years |
| The door (insulated steel) | 20 to 30 years |
What are the replacement parts for a garage door frame?
The frame is the two side jambs and the header, and the parts replaced on it are the doorstop molding with its vinyl weather flap, the jamb brackets that hold the vertical tracks, and, where water has rotted it, the wood jamb itself. Cellular PVC doorstop molding on both jambs and the header runs $249 to $289 for a single-car door and $289 to $349 for a two-car door, or $349 single and $449 to $549 two-car combined with a new bottom seal. Rotted jamb wood is quoted on site after we see how far the rot goes. Details on the bottom seal and doorstop page.
Is it cheaper to repair or replace a garage door?
Repair is cheaper whenever the damage is one part: the biggest single repair on our price list, a section replacement at $320 to $680, is still a fraction of a new door, which starts at $1,180 installed. Replacement starts to make sense when two or more sections are damaged or rusted through, when the panel is discontinued and cannot be matched, or when the door needs springs, cables and rollers all at once on a door past 20 years. If you are in Virginia Beach, see garage door installation in Virginia Beach; anywhere else in Hampton Roads, the new door installation page.
"Most homeowners can point at their garage door and name maybe two parts: the spring and the opener." Everything else, the drum, the cone, the trolley, the hinges, they've never had a reason to learn until something breaks. I built these diagrams the way I'd explain it standing next to your door: here's the part, here's what actually goes wrong with it in Hampton Roads, and here's what it costs to fix, not a national average.
Frequently asked questions
What are the main parts of a garage door?
Panels, vertical and horizontal tracks, a torsion spring and shaft, lift cables, rollers, hinges, a bottom seal, and an opener with a motor, rail, and wall console. The diagrams above label all of them, and every part links to what it costs to repair.
What part breaks and stops a garage door from opening?
Most often the torsion spring, the thick coiled spring above the door that counterbalances its weight. A snapped spring shows up as a loud bang followed by a door that will not lift, or an opener that strains and stalls. Torsion spring pair replacement runs $345 to $575 installed.
Prices can vary with the specifics of each job (door weight, spring size, rust or structural damage, parts needed), and we always quote in writing before we start. The full list is on our garage door repair price list.
What is the part called that a garage door hangs on inside the frame?
The vertical and horizontal tracks, the metal channels on each side of the opening. Rollers attached to the panel edges ride inside the tracks as the door moves. A bent track or worn rollers is the most common cause of a door binding or coming off track.
How much does it cost to replace a garage door part?
It depends on the part: a roller set runs $120 to $200, a cable pair runs $160 to $280, hinges run $140 to $220 for a professional service call, a bottom seal runs $110 to $190, and a torsion spring pair runs $345 to $575, all installed. Full ranges are listed next to each labeled part above.
What does the garage door opener trolley do?
The trolley rides along the opener's rail and connects to the door through a straight or bent arm. When the motor turns the drive belt or chain, the trolley slides along the rail and pulls the door open or lets it down. A trolley disconnected from its release cord is how a door is opened by hand during a power outage.
